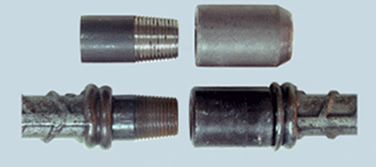

About Friction welding coupler...

Material The main raw material for this product is 1045 or S45C, but customer also can request for using SCM 440 raw material.
Process The main process to produce this product is using cold forge, using CNC for threading the thread, customer also can request to roll the mark on the products.
Thread Rolling thread and CNC

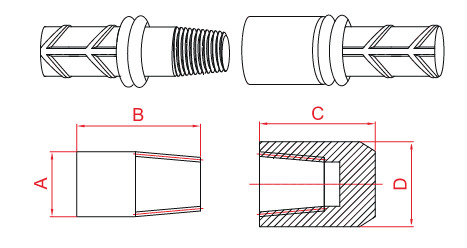

Rebar Size
A
B
C
D
D13
13
40
35
20
D16
16
42
37
23
D19
19
45
40
25
D22
22
52
45
30
D25
25
55
50
34
D29
29
60
55
38
D32
32
65
60
42
D36
36
70
65
46
D40
40
75
70
50
D43
43
80
75
55
The size can follow the customer's repuest.

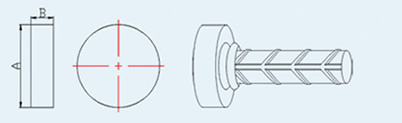

  T head





Rebar Size
A
B
D13
35
10
D16
40
12
D19
50
14
D22
55
18
D25
65
20
D29
70
21
D32
80
22
D36
95
24
D40
105
27
D43
115
32
D50
135
35
D57
155
41
The size can follow the customer's repuest.
